PRODUCT SPECIFICATIONS

BrightSign XT-4 Family

Digital Signage Players



Digital Signage Players

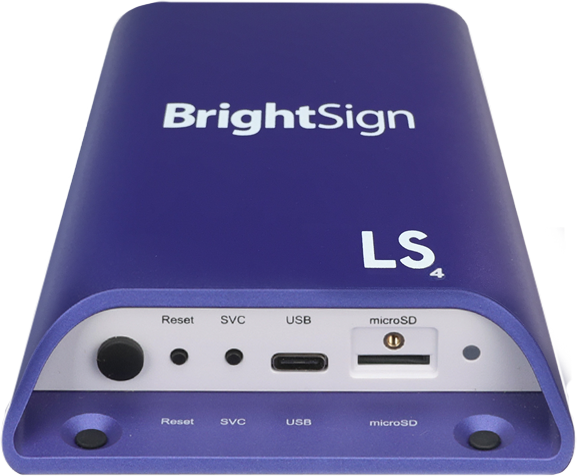

LS424

Brightsign's LS-424 is a streamlined, digital signage player, providing a stable, reliable and affordable solution. It supports H.625 1080P decoding, HTML5 support and usb connectivity for dynamic interactions. This is an ideal solution for vanilla streaming or large deployments of common content

LS424
VIDEO ENGINE DECODER
Single 1080p60 video decoding X
MEDIA FORMATS
Video Codecs: H.265, H.264(MPEG-4, Part 10), MPEG-2, MPEG-1 X
Video Containers: .ts, .mpg, .vob, .mov, .mp4, .m2ts, .wmv X
Images: BMP, JPEG, PNG X
Audio: MP2, MP3, AAC, and WAV (AC3 is passed through) X
HTML5 X (Entry-level)
DISPLAY RESOLUTIONS
1920x1200, 1920x1080x 24/25/29.97/30/50/59.94/60p, 1920x1080x50/59.94/60i, 1600x1200x60p, 1440x1050x60/75p, 1440x900x60/75p, 1360x768x60p, 1280x1024x60/75p, 1280x960x60p, 1280x800x60p/75p, 1280x768x60p, 1280x720x50/59.94/60p, 1024x768x60p, 800x600x60/75p, 720x576x50p/50i, 720x480x59.94/60p/60i, 640x480x60p X
HARDWARE INTERFACES
External micro SD Slot (SDHC and SDXC); SDHC storage up to 32GB SDXC storage up to 2TB X
USB High Speed Host Port (also supports content updates) X (Type C)
Analog Stereo Audio (requires USB adapter cable) X
HDMI 2.0a Out X
Ethernet (100 base T) X
M.2 (E) Keyed Wi-Fi/Bluetooth Connector X
Wi-Fi External Antenna Connector (optional) X
Status LEDs Power
Reset and Service Buttons X
FEATURES
H.265 Decoding: smaller le sizes and lower bitrates than H.264 X
HTML5: hardware-accelerated engine that plays modular HTML assets awlessly alongside high-bandwidth video X
(Entry-level)BrightBeaconTM: 2-way Bluetooth/Beacon communication between mobile devices & signage (requires: wireless/Bluetooth module) X
BrightWall™: synchronized playback across multiple displays X
AutoWall™: embraces the power of HTML5 to create unique multimedia video walls X
Zones: playback multiple content types on a single screen X
IP Streaming: play streaming media X
Interactivity: trigger playback from virtually any type of interactive device via a multitude of interactive ports X
(USB, UDP)Live Feeds: Live Data, Live Text, MRSS, Twitter, Flickr, etc. X
Tagging: BrightSign Network users can assign media and player tags for highly targeted content distribution X
BrightSign App: update signs with an iOS device X
Geo-Fencing: trigger playback based on location (requires USB dongle) X
Sign Preview: preview presentation playback in BrightAuthor X
Remote Snapshot: remotely view a snapshot image of the display’s playback X
Networking: update, manage and schedule your signage X
B-deploy: A setup feature to deploy many players at once X
MISCELLANEOUS
Dimensions (W x H x D) 96.8 x 23.7 x 144.3mm or 3.8 x 0.9 x 5.7 in
Weight 5.6 oz
Power 5V/2A (10 Watts)USB compatible power
Multi-Country Power & Regulatory Approvals X
Built-in Wall Mounting Brackets X
1 year warranty, parts and labor X
Supported Features
Feature Windows Linux
Video Support .webm .avi .wmv .m4v .mov .h264 .3gp .mp .mpg .mpeg .mp2 .mpg2 .mpeg2 .mp4 .mpg4 .mpeg4 .webm .avi .wmv .m4v .mov .h264 .3gp .mp .mpg .mpeg .mp2 .mpg2 .mpeg2 .mp4 .mpg4 .mpeg4
Image Support png .jpg .jpeg .gif .bmp .svg png .jpg .jpeg .gif .bmp .svg
Audio Support .mp3 .wav .mp3 .wav
Interactive Support .pps .pptx .ppt .xls .xlsx .pdf .swf .flv .htm .html .pdf .swf .flv .htm .html
Other Supported Formats .3d .e3d .ugp .srt .vtt .wvtt .3d .e3d .ugp .srt .vtt .wvtt
