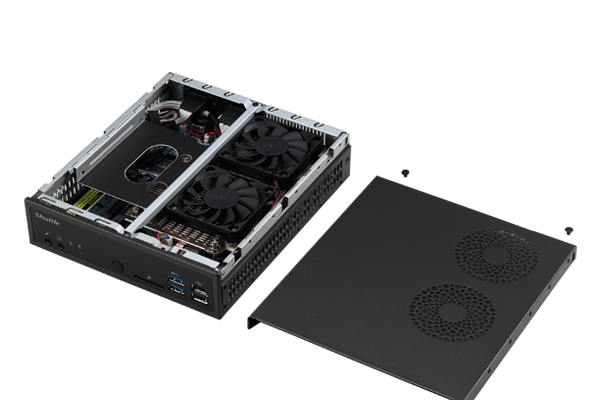

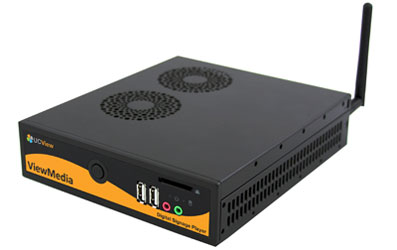

View Media 50
The VM-50 digital signage player is a cost effective media player platform which offers high computing performance and graphic performance, great flexibility and tolerance that support all standard media formats, and are compatible with various Operating Systems.
View Media Guidelines
Operating System Support: Windows 7, Windows 8.1, Windows 10, Linux
Supports Windows Network, including Active Directory or any Windows Network Environment, such as VPN, VLAN, etc.
UCView is a Windows Native .NET application.
All communication between UCView application and the UCView server is done over Port 80. All other ports can be blocked.
Anti-virus can be installed on a player machine, however, anti-virus can affect player's performance while it's running.
| PROCESSOR | Supports Intel® 8th/9th generation Core® i3/i5/i7/i9 series, Pentium®, and Celeron® LGA 1151v2 65W processors |
| MEMORY |
2 x 260 pin DDR4 2400/2666 MHz (PC4-19200/21300) SDRAM at 1.2V Supports dual channel up to 32GB (16GB x 2) |
| VIDEO GRAPHICS | Intel HD Graphics |
| VIDEO OUTPUT | HDMI 2.0 + DisplayPort, Supports dual independent displays, Supports 4K Ultra HD |
| AUDIO | Realtek ALC662 HD audio |
| ETHERNET | Intel i211 x 2 Dual LAN10/100/1000 MB/s operation Supports Wake on LAN function Supports Teaming mode |
| STORAGE INTERFACE | SATA 6 GB/s |
| STORAGE | 120GB Solid State Drive |
| ONBOARD CONNECTORS |
(1) 4 pin fan connector (1) USB 2.0 (1) CMOS battery connector (1) VGA connector (for PVG01 use) (2) Serial interface (COM) (1) Jumper for power on after power fail |

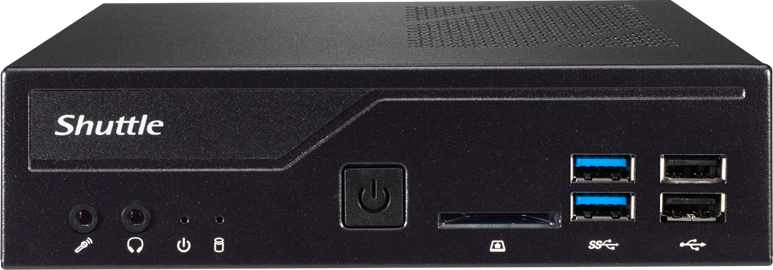

| FRONT PANEL |
(1) Power Button (1) Power LED (1) HDD LED (2) USB 2.0 (2) USB 3.1 Gen 1 (1) External microphone jack 1/8" (1) External headphone jack 1/8" (1) SD Card Reader |
| BACK PANEL |
(1) HDMI 2.0 (1) DisplayPort 1.2 (2) USB 3.1 Gen 1 (2) Gigabit LAN ports (2) Kensington Lock (1) RS232 (1) RS232/RS422/RS485 (1) Clear CMOS button (2) USB 2.0 (2) Wireless Antenna holes (1) VGA connector (optional PVG01) (1) DC-in |
| DRIVE BAYS | (1) 2.5" HDD/SSD bay |
| DIMENSIONS | 7.5(L) x 6.5(W) x 1.7(H) inches |
| POWER | Input: 100 -240V AC, 50/60 Hz Output: 19V/4.74A DC or 12V 90W power supply |
| ACCESSORIES | Quick GuideScrew package SATA cable Power cord Vertical stand (PS02)VESA mount VESA mount quick guide Driver DVD Adapter cable for external power button (CXP01)802.11 a/c and Bluetooth 4.0 WLAN module (optional) |
| EXPANSION SLOT | (1) M.2 MAX to 2280 Type M (1) M.2 MAX to 2230 Type E key socket |
| OS SUPPORT | Windows 10 64 bit, Linux 64 bit |
Supported Features
| Feature | Windows | Linux |
|---|---|---|
| Video Support | .webm .avi .wmv .m4v .mov .h264 .3gp .mp .mpg .mpeg .mp2 .mpg2 .mpeg2 .mp4 .mpg4 .mpeg4 | .webm .avi .wmv .m4v .mov .h264 .3gp .mp .mpg .mpeg .mp2 .mpg2 .mpeg2 .mp4 .mpg4 .mpeg4 |
| Image Support | png .jpg .jpeg .gif .bmp .svg | png .jpg .jpeg .gif .bmp .svg |
| Audio Support | .mp3 .wav | .mp3 .wav |
| Interactive Support | .pps .pptx .ppt .xls .xlsx .pdf .swf .flv .htm .html | .pdf .htm .html |
| Other Supported Formats | .3d .e3d .ugp .srt .vtt .wvtt | .3d .e3d .ugp .srt .vtt .wvtt |
