PRODUCT SPECIFICATIONS

XH310/XH310R (VM -100)

Digital Signage Players



Digital Signage Players

ViewMedia 100

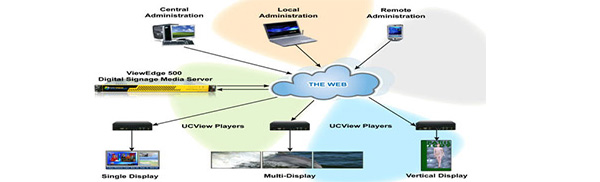

The View Media 100 digital signage player requires a SaaS or server in order to run a digital signage network. SaaS is hosted on a cloud, allowing for you to access your digital signage network via the Internet. SaaS allows for centralized management from one location. A server, however, is both a hardware and software solution with the same management functions as SaaS. Servers are crucial for corporations that rely on security and carry sensitive information. In addition, using a server is ideal if Internet connection and downloads are internal and communication is local via an on-premise based solution.

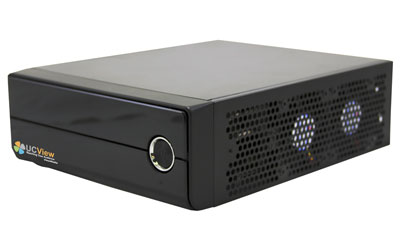

The View Media 100 is one of UCView's most stable and secure digital signage player. It consists of professional innovations such as energy efficient technologies and three flexible form factors designed to fit your specific digital signage needs. With its revolutionary new architecture and power that will redefine media playing, the View Media digital signage player helps you accomplish more with every minute of your time and every dollar of your investment.

Features

The latest technology and the performance you expect from a leading commercial PC featuring an Intel Skylake 65W Core i-series and Celeron processor.

Superior manageability features: Combining technologies from UCView, Remote Access, and Intel, the View Media provides digital signage managers a full range of remote management capabilities which lower maintenance costs and protects digital signage assets.

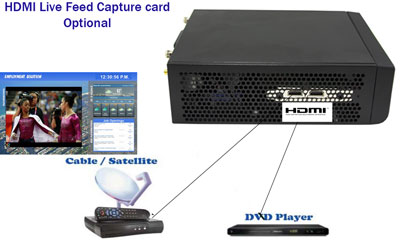

HDTV Technology: The View Media 100 also has the ability to provide high-definition technology. By request, the View Media 100 can be fitted with an AVerMedia capture card and include an HDMI and AV composite port. This feature will enable your digital signage player to display high-definition television for your viewers.

View Media Guidelines

Operating System Support: Windows 7, Windows 8.1, Windows 10, Linux

Supports Windows Network, including Active Directory or any Windows Network Environment, such as VPN, VLAN, etc.

UCView is a Windows Native . NET application

All communication between UCView application and the UCView server is done over Port 80. All other ports can be blocked. Anti-virus can be installed on a player machine, however, anti-virus can affect player's performance while it's running.

Quick Specs
See Detailed Specs: US QuickSpecs ยป Player PDF
Color Black
Construction Aluminum
Dimensions 7.5(L) x 6.5(W) x 1.7(H) inches
Processor CPU i3 8100
Memory Installed: 4GB DDR4, Supports dual channel up to 32GB (16GB x 2)
Operating System Windows 7/ Windows 10/ Linux
Front Panel

(1) Power Button

(1) Power LED(1) HDD LED

(2) USB 2.0

(2) USB 3.1 Gen 1

(1) External microphone jack 1/8"

(1) External headphone jack 1/8"

(1) SD Card Reader

Back Panel

(1) HDMI 2.0

(1) DisplayPort 1.2

(2) USB 3.1 Gen 1

(2) Gigabit LAN ports

(2) Kensington Lock

(1) RS232

(1) RS232/RS422/RS485

(1) Clear CMOS button

(2) USB 2.0

(2) Wireless Antenna holes

(1) VGA connector (optional PVG01)

(1) DC-in

Network

Intel i211 x 2 Dual LAN

10/100/1000 MB/s operation

Supports Wake on LAN function

Supports Teaming mode

Storage 120GB Solid State Drive
Video Output HDMI 2.0 + DisplayPort, Supports dual independent displays, Supports 4K Ultra HD
Input/Output Front: 2 x 2.0 USB, 2 x 3.0 USB Back: RJ45 Gigabit LAN Port, 1 x RS232, 2 x 2.0 USB, 2 x 3.0 USB
Power Input: 100 -240V AC, 50/60 HzOutput: 19V/4.74A DC or 12V90W power supply
Accessories

Quick Guide

Screw package

SATA cable

Power cord

Vertical stand (PS02)

VESA mount

VESA mount quick guide

Driver DVD

Adapter cable for external power button (CXP01)

802.11 a/c and Bluetooth 4.0 WLAN module (optional)

Warranty - year(s) (parts/labor) 3/3/3
Supported Features
Feature Windows Linux
Video Support .webm .avi .wmv .m4v .mov .h264 .3gp .mp .mpg .mpeg .mp2 .mpg2 .mpeg2 .mp4 .mpg4 .mpeg4 .webm .avi .wmv .m4v .mov .h264 .3gp .mp .mpg .mpeg .mp2 .mpg2 .mpeg2 .mp4 .mpg4 .mpeg4
Image Support png .jpg .jpeg .gif .bmp .svg png .jpg .jpeg .gif .bmp .svg
Audio Support .mp3 .wav .mp3 .wav
Interactive Support .pps .pptx .ppt .xls .xlsx .pdf .swf .flv .htm .html .pdf .swf .flv .htm .html
Other Supported Formats .3d .e3d .ugp .srt .vtt .wvtt .3d .e3d .ugp .srt .vtt .wvtt
